Features & Benefits

50 HP boilers are used in all types of applications throughout the United States. Although vertical boilers are available at this capacity, most industrial plants elect to go with a horizontal firetube boiler. The horizontal firetube boiler offers a much longer lifespan, safer operation and more stable firing. 50 HP boilers can be purchased in low pressure (15psi) steam, high pressure (150 – 300psi) steam, hot water and high temperature hot water configurations.
Below we compare two of the most popular 50 HP boiler models:

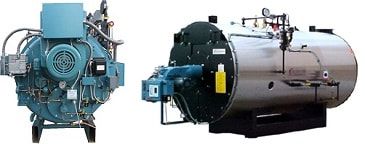

  • York-Shipley YS5-50-150ST
  • Cleaver-Brooks.CB-700-50

Equipment Specifications

  • Capacity: 50 BHP / 1,725 PPH / 1,680,000 BTUs
  • ​Water evaporation (steam): 3.5 GPM
  • Water circulation (HW): 33.5 – 335 GPM
  • Outputs: Low pressure steam, High pressure steam, Hot water, High temperature hot water
  • Fuels Consumption (Max):
    • ​Natural Gas: 2,100,000 BTUs/Hr
    • #2 Oil: 15 GPH
    • Propane: 2,100,000 BTUs/Hr
  • Voltage: 208-230V, 460V, 480V and 575V
  • Boiler brands: York-Shipley, Cleaver-Brooks

New 50 HP Boiler Comparison Tool

*Standard 150psi steam boiler, natural gas & #2 oil fired

Need help selecting the right 100 HP boiler?

We’re more than happy to help. Power Mechanical has worked to match the right equipment to thousands of commercial and industrial facilities around the world. Our application engineers are ready to help pick the best boiler and auxiliary systems for your specific needs. Give us a call!

Common Applications

  • Commercial Laundry
  • Food processing
  • Tank cleaning
  • Breweries
  • Manufacturing

Related Equipment

  • 50 HP feedwater systems
  • Blowdown separators
  • Non-return (stop & check) valves
  • Condensate return systems
  • 50 HP Boiler Water softeners

Contact Us Now

To find out how Power Mechanical can help you with your 50 HP needs
