Cleaver-Brooks

Power Mechanical stocks Cleaver-Brooks boilers & parts.

We work with many different brands of boilers, and Cleaver-Brooks is one of our favorites. Made in the USA for over 80 years, Cleaver-Brooks has become a staple of the boiler industry. Their product line spans from small condensing hot water boilers to elevated drum watertube boilers.

Cleaver-Brooks boiler

Our Inventory


Cleaver-Brooks Boiler Models

Cleaver-Brooks CBLE boiler

CB & CBLE

The Cleaver-Brooks CB model can be found in boiler rooms around the world. It a 4-pass dryback boiler with integral air atomizing burner. Combustion air is delivered through a rotary air damper located in the front head. Steam boilers up to 700 HP boast five square foot of heat transfer surface area per boiler horsepower, while the 800 HP model utilizes 4.375. The CB model later became the CBLE which includes an integral flue-gas recirculation system for emission reduction. Flue gas is mixed with combustion air inside of the front head, resulting in no external FGR piping. Model CB and CBLE are available from 25 HP to 800 HP in pressures from 15# to 300#, and in a wide variety of gaseous and liquid fuels.

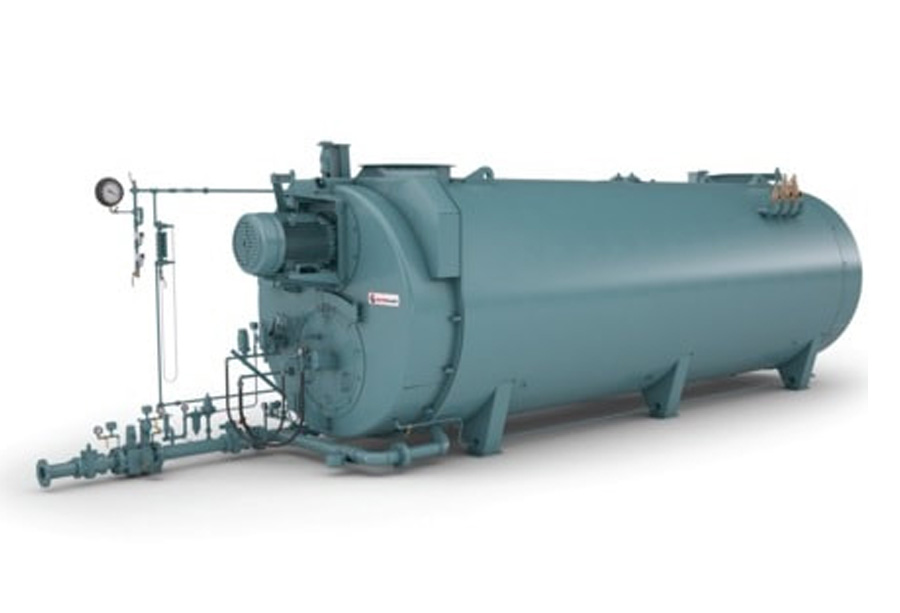

Cleaver-Brooks CBEX boiler

CBEX

The Cleaver-Brooks CBEX model is a smaller footprint boiler which ventures away from the industry standard “5 square feet of surface area per boiler horsepower.” The CBEX achieves high efficiency ratings by utilizing ribbed boiler tubes for additional heat transfer. Fewer tubes allows the CBEX to have a much larger furnace for higher heat release rates in the first pass. The CBEX model is available in the “Premium” gun burner design and “Elite” integral burner design.
O type watertube boiler

Watertube Boilers

In 1998, Cleaver-Brooks purchased Nebraska boiler to expand its product offering into large package watertube boilers. Through the acquisition of Nebraska, Cleaver-Brooks is now able to offer boilers up to 1,000,000 pounds per hour in capacity. In 2001, Cleaver-Brooks purchased NatCom burner company to offer their own proprietary burner technology on watertube boilers.
Cleaver-Brooks gaskets

Parts

Power Mechanical stocks a multi-million dollar inventory of current and obsolete Cleaver-Brooks boiler parts to serve our valued customers around the world. We stock all Cleaver-Brooks components from gasket kits to fan wheels.
View our inventory of Cleaver-Brooks Products
CB & CBLE Boilers

Industrial Watertube Boilers

  • NOS-2A-58: 60,000 PPH 350psi O-type watertube boiler
  • NOS-2A-67: 75,000 PPH 350psi O-type watertube boiler

Parts

  • Forced draft fan blower motors
  • Impellers
  • Atomizing air compressors
  • Burners
  • Rotary air dampers
  • ​Refractory doors
  • Gasket kits
  • Corrugated furnace tubes
  • Intermediate doors
Contact Us Now
To find out how Power Mechanical can help you with your Cleaver-Brooks needs
